Technical features
%202-1.png?width=800&height=800&name=Sensore%20angolare%20con%20alberino%20e%20connettore%20integrato%20tondo%20(3%20pin)%202-1.png)

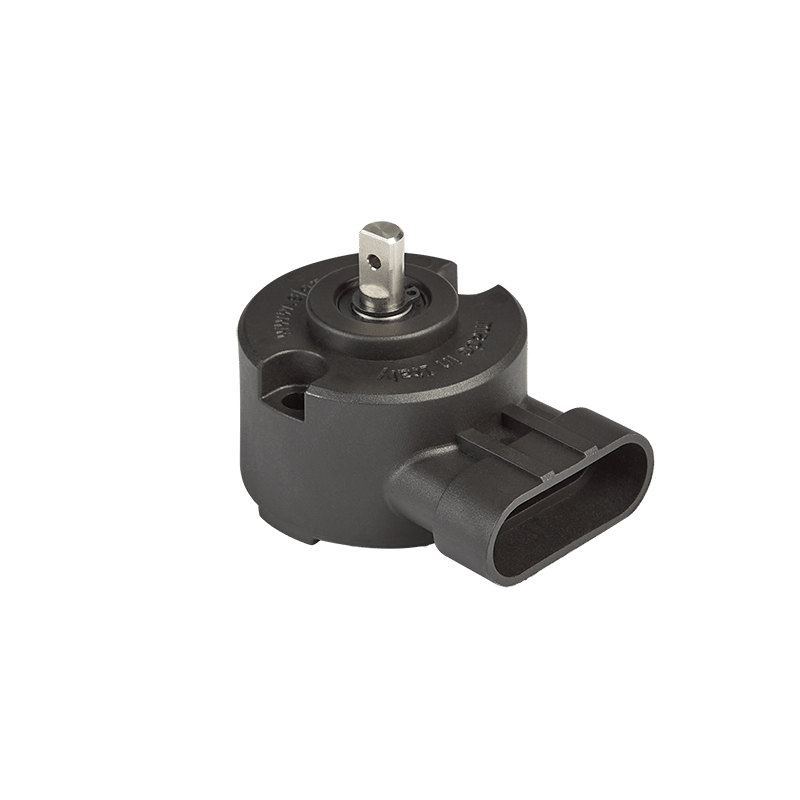

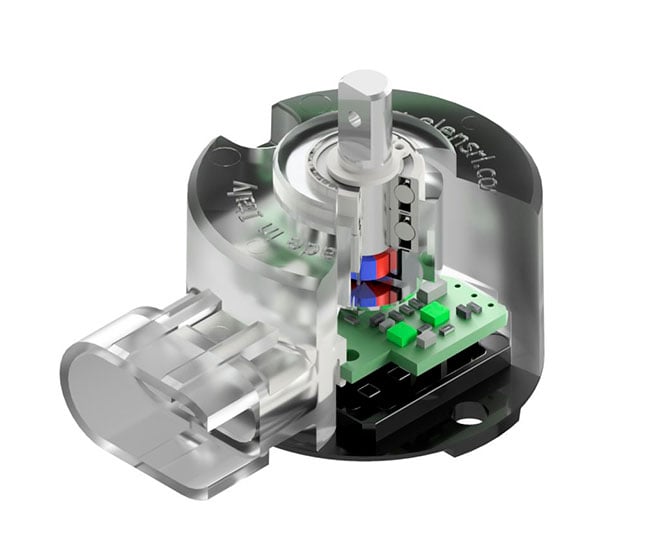

Elen angle sensors with integrated shaft and connector have simple and robust mechanics and are suitable for use in harsh environments. They are the ideal solution for installation in confined spaces and/or in application contexts where it is not necessary or possible to provide a cable outlet (for example, when the connection is made using existing external wiring). The principle of operation is that the non-contact Hall sensitive element detects the rotary movement by intercepting the magnetic field generated by a magnet rotating integrally with the shaft, and provides an output proportional to the angle of rotation.
Mechanical configurations
2 mechanical case configurations available which differ in type of connector
Applications
Elen angle sensors with integrated connector are the alternative solution, suitable for those applications where the cable outlet would be redundant or not feasible.
Construction features
