Technical features
.png?width=800&height=800&name=Manopola%20Praxis%20(nera).png)

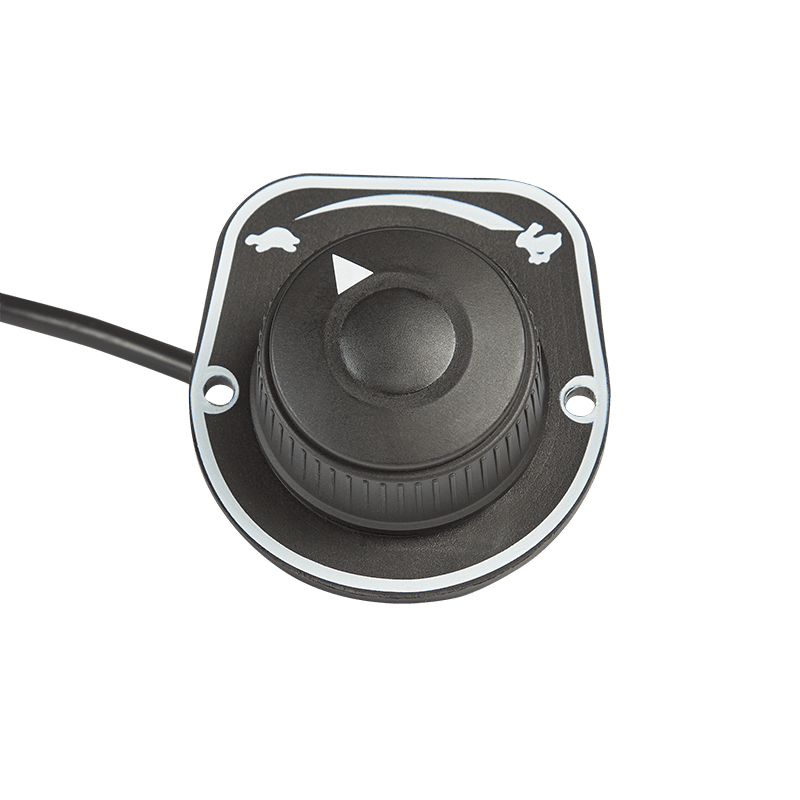

The Elen Praxis series throttle knob is an integrated manual control with a robust and compact mechanical structure and exclusive design.
Suitable for use on agricultural machinery and industrial vehicles, it can also operate in harsh conditions, i.e. in working environments subject to strong vibrations and exposure to external agents.

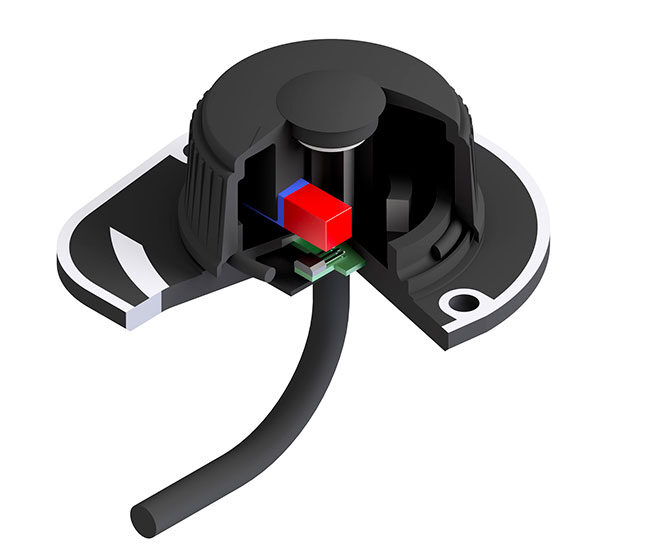

The principle of operation is that a Hall sensor integrated in the base detects the field intensity of a magnet integrated in the knob and provides an output proportional to the angle of rotation.
The Praxis knob is supplied complete with standard screen printing for direct installation on the dashboard, armrest or chassis of the vehicle, without the need for additional screen printing by the customer.
Mechanical configurations
The control consists of a screen-printed base and a knob (black or orange RAL 2004). It is mounted directly above the dashboard and is fully visible, requiring no vertical space below the mounting surface.
Applications
The Praxis range of pedals is used to control engine speed and other vehicle functions on agricultural machinery, industrial vehicles, load handling and industrial cleaning vehicles, and other specialised vehicles.
Construction features
