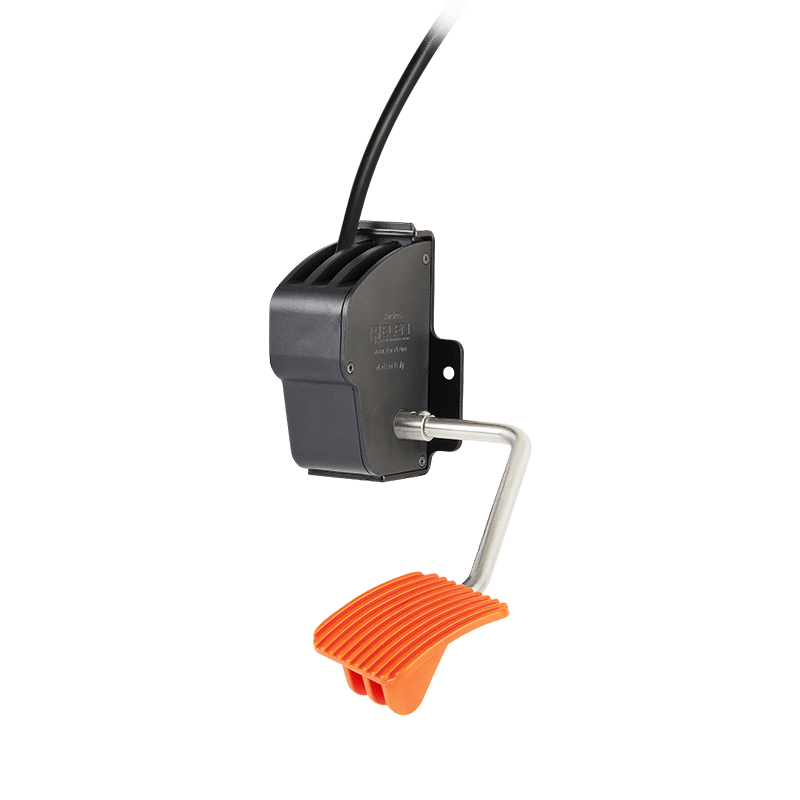

ANTHOS series electronic pedal - Technical characteristics

The Anthos series accelerator pedals are suspended pedals with a metal lever, specifically designed for use on agricultural tractors and off-road vehicles. Anthos pedals meet high standards of performance and quality, also thanks to the integrated architecture of the product, which places the electronic board directly inside the mechanical structure of the pedal.

PROGRAMMABLE ELECTRONICS

- Supply voltage: 5 V; 10-30V
- Output signal: single, double, voltage, current, PWM and CAN BUS (SAE J1939)
- Configurable output (for each channel) analogue, PWM or CAN J1939: minimum levels max within power range or duty cycle; increasing or decreasing inclination; customizable CAN BUS message - single or double IVS; NO or NC; trigger threshold programmable to a value of your choice

MECHANICS

- Suspended pedal with wall mounting
- Robust mechanical structure suitable for heavy-duty applications
- High actuation load
- 20° mechanical stroke
- Metal lever
- Customizable lever and footplate
- Customizable cable length and connector

RELIABILITY

- Contactless Hall effect
- Integrated electronics
- IP67 protection rating
- Immunity to vibrations and electromagnetic disturbances
- Operating temperature: -40°/+80°
- Protections from ESD, Load-dump, overvoltage, polarity inversion, short circuit on output

FUNCTIONAL SAFETY

- Signal redundancy thanks to the integration of isolated and galvanically distinct circuits (double output version)

Mechanical configurations

Anthos pedals combine compactness, mechanical solidity and reliability thanks to the electronic board mounted on the mechanical structure of the product, reducing the number of mechanical contact elements subject to wear.

Anthos
Cable and connector
customizable
Power source
5V / 10÷30V
Output
voltage, current, PWM and CAN BUS (SAE J1939)
Number of signals
single/double
Fixing
Wall
Cylinder material
plastic

Applications

Anthos electronic pedals are specifically designed and developed for all manufacturers of open field agricultural tractors, telehandlers and off-road vehicles.

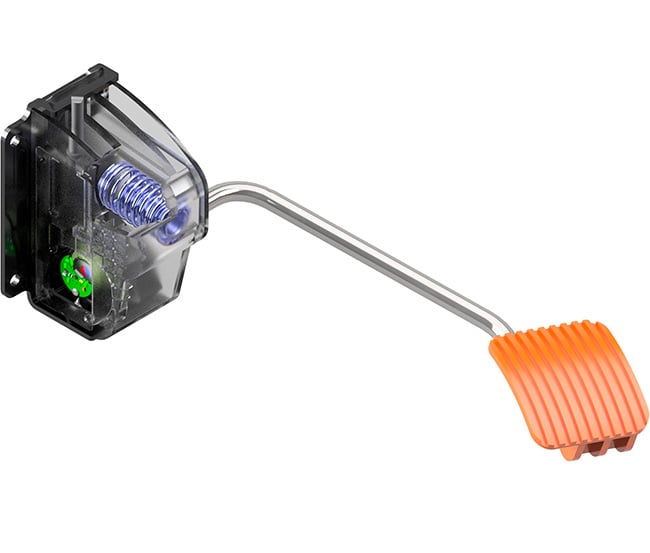

Construction features

1
2
3
4
5
6
7
