KOSMOS series electronic pedal

Ask for info

Technical features

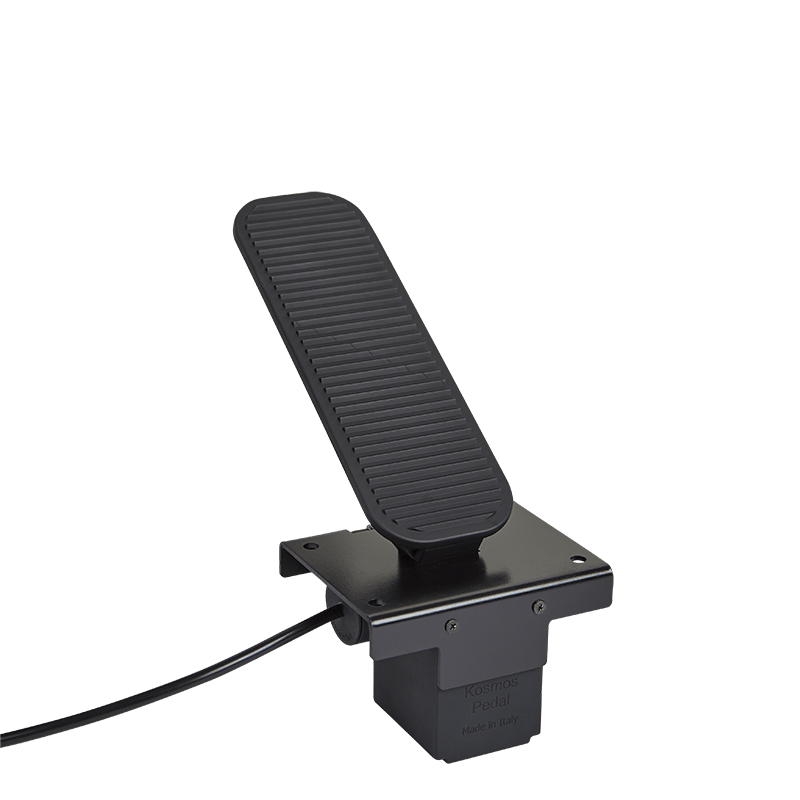

KOSMOS series electronic pedal - Technical characteristics

The Kosmos series of accelerator pedals are low profile pedals, particularly suitable for use on material handling vehicles, industrial cleaning vehicles and other industrial vehicles where a low profile pedal that can be mounted directly to the underside of the vehicle platform is required.
Kosmos pedals are particularly suitable for installation on vehicles where space is limited.

PROGRAMMABLE ELECTRONICS

- Supply voltage: 5 V; 10-30V
- Output signal: single, double, voltage, current, PWM and CAN BUS (SAE J1939)
- Configurable output (for each channel) analogue, PWM or CAN J1939: minimum levels max within power range or duty cycle; increasing or decreasing inclination; customizable CAN BUS message - single or double IVS; NO or NC; trigger threshold programmable to a value of your choice

MECHANICS

- Low profile pedal
- Easy installation with mounting under the footboard and fixing with metal plate
- Robust mechanics
- Ergonomic design
- 25° mechanical stroke
- Customizable cable and connector length

RELIABILITY

- Contactless Hall effect
- Integrated electronics
- IP67 protection rating
- Immunity to vibrations and electromagnetic disturbances
- Operating temperature: -40°/+80°
- Protections from ESD, Load-dump, overvoltage, polarity inversion, short circuit on output

FUNCTIONAL SAFETY

- Signal redundancy thanks to the integration of isolated and galvanically distinct circuits (double output version)

Mechanical configurations

The Kosmos low-profile pedals combine compactness, mechanical solidity and reliability thanks to the integration of the electronic board directly on the mechanical structure of the product, reducing the number of mechanical elements in contact and subject to wear.

Kosmos
Cable and connector
customizable
Power source
5V / 10÷30V
Output
voltage, current, PWM and CAN BUS (SAE J1939)
Number of signals
single/double
Fixing
Under the platform
Cylinder material
plastic

Applications

The Kosmos electronic pedals are suitable for a wide range of industrial and utility vehicle applications, including electric traction.

Construction features

1
2
3
4
5
6
